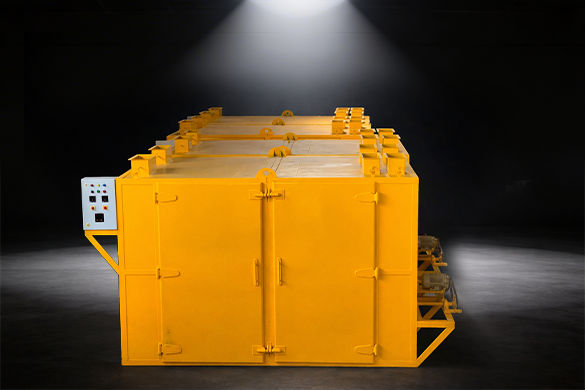

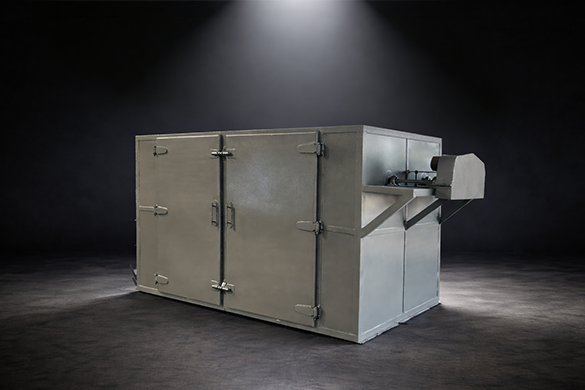

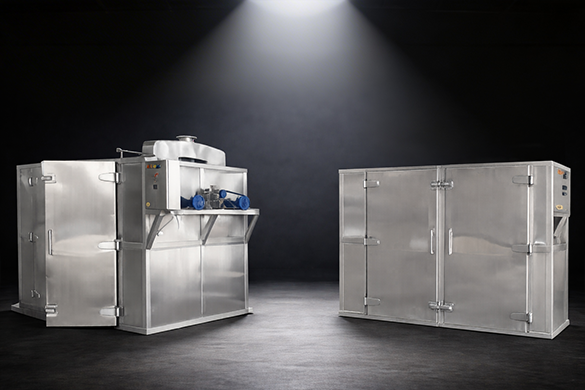

Tray Dryer – Industrial Hot Air Drying System

H K Associates designs and manufactures Industrial Tray Dryers engineered for accurate, uniform, and energy-optimized drying. The systems are suitable for processing powders, granules, wet cake, pellets, pigments, chemicals, cashew, agro-based materials, food products, and other heat-sensitive substances with consistent and reliable performance.

Offered in 24 to 240 tray capacities, each tray dryer is built with rugged construction, optimized airflow design, and precise temperature control, delivering uniform drying efficiency while reducing operating and maintenance costs.

Key Features:
Heavy-duty MS/SS, stackable, corrosion & high-temperature resistant, easy to move and hygienic.

Get Quotes

Premium-Grade Construction & Design

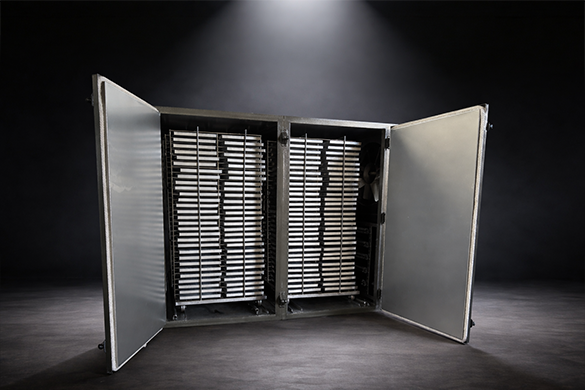

Robust Double-Wall Cabinet

The cabinet is designed in 6 / 12 / 24 / 48 / 196 tray configurations, featuring:

  • Heavy-duty MS & SS angle frame
  • Inner & outer walls with 18 SWG SS / 16 SWG MS sheet
  • 60 mm thick glass wool insulation to prevent heat loss
  • Industrial-grade fabrication to ensure long-term strength

This double-wall construction improves thermal efficiency and reduces energy consumption.

Heavy-Duty Airtight Doors

  • Each door is built with:
    • 16 SWG MS sheet construction
    • 50 mm glass wool insulation
    • Ball-catch locking system for secure closing
    • Asbestos gasket rope (40 mm) to maintain airtight sealing

    • Designed to withstand continuous high-temperature operations with zero heat leakage.

Efficient Air Circulation System

  • Uniform hot air circulation is ensured through:
    • Heavy-duty MS multi-blade fans
    • Ball-bearing pedestal mounting
    • Driven by 1 HP TEFC electric motor
    • Adjustable inlet & outlet dampers

    • This ensures consistent drying across all trays, improved heat transfer, and faster drying cycles.

High-Quality Heating System

  • Steam / Thermic Fluid Radiator
    • Finned Tube & Strip Tube radiator made from 14 SWG ERW tubes
    • 26 SWG CRCA MS fins (6 FPI) for superior heat exchange
    • Pressure-tested pneumatically at 7 kg/cm² (100 PSI)
  • Electrical Heating (Optional)
    • Strip-type heaters installed along sidewalls
    • Operates on 415V, 3-phase, 4-wire system

These heating options deliver stable temperature control and improved energy efficiency.

Industrial-Grade Trolleys

  • Each tray trolley is designed to withstand heavy loading and continuous operation
    • Frame built from 40 mm MS angle
    • Horizontal supports using 25 mm MS angle
    • Optimized design for smooth airflow
    • Fitted with 2 swivel castor wheels + 2 fixed wheels for easy mobility

Advanced Control Panel

  • A pre-wired control panel includes:
    • Digital temperature indicator & controller
    • Motor contactor & overcurrent relay
    • Fuses, pilot lamps, push buttons
    • Main isolator switch
    • Safety-protected electrical system
  • Premium Surface Finish
    • Inside & structure: Two coats of high-temperature aluminium paint
    • Outer cabinet: Red oxide primer + hammer tone finish This ensures long-term resistance to heat, corrosion, and industrial wear.

Details Required for Quotation

  • To recommend the correct model and pricing, please provide
    • Tray Size: (Standard: 400 mm × 800 mm × 32 mm)
    • Loading Capacity: 24 / 48 / 60 / 120 / 240 / 360 Trays
    • Required Temperature (°C)
    • Loading/Tray (Kg)
    • Material Moisture: Inlet / Outlet
    • Type of Heating: Steam / Electric / Thermic Fluid / Hot Air Based
